How the JUG Works

How animals drink from the JUG

It all starts with the “Draw Tube” which is a unique design for supplying the animal with water. It is much like a giant straw so the animal can use its normal method of drinking. The animal places its mouth in the open pool of water over the opening in the drinking bowl and sucks up the water just as it would drink from a natural water hole.

Designed for clean water

JUG water is clean. No more smelly water from heavy bacterial growth. The Draw Tubes are attached to the drinking bowl with a Feed Trap which keeps feed debris from the animal’s mouth out of the reservoir. As an animal drinks from the JUG a suction/swirling action is created in the Feed Trap area, thus most of the feed from the face of the animal is sucked up as the animal drinks. Also, anytime an animal drinks, the water is “turned over” as fresh, clean water enters the drinking bowl. With JUG Livestock Waterers you will not have the usual slime problem to deal with. No algae will grow in the JUG since it is a light-tight waterer. The bowl
is sealed with Weather Seal.

For more information on JUG Waterers call:
800-584-6675

cow-calf-drinking

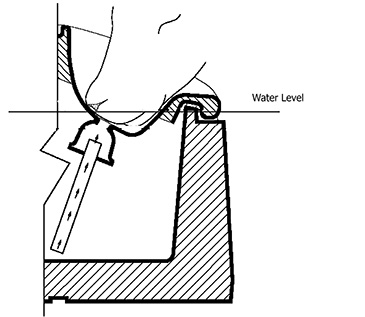

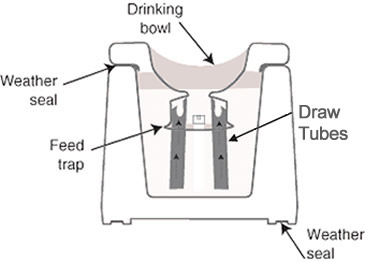

jug-illustration-1 jug-illustration-3

  1. Clean, Clean, Clean
  2. Unique Draw Tube Design
  3. One, Two or Four Bowl Models
  4. Feed Trap to Keep Water Clean
  5. No Lids, Flaps, Balls or Disks
  6. Open Bowl Design
  7. External Drain Plug
  8. Inspection Cover For Easy Access
  9. Durable Rotomolded Plastic
  10. External Float Valve Adjustment



livestock-waterers-banner

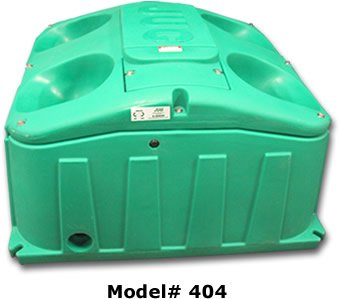

model-404-jug-waterer

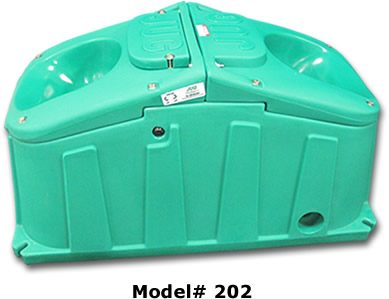

model-202-jug-waterer
